In this post, you’ll learn how to simulate throwing images, objects, or other components on your form when the user interacts with them via keyboard or mouse; how to simulate the effect of force on objects in the 2D Form window, and how to throw balls in our apps like in sports games. By learning to simulate the realistic physical effects in c++, it will help you easily build C++ applications with the use of C++ IDE.
Table of Contents
Mice, touch and interaction
First, in normal hardware like mouse and touch panels etc. there is no sensor to measure forces. there is no way to measure force on mouse button, or force on touchpad. Some new touchpads recognize the force but exactly unable to measure real force. So, how we can emulate forcing as in sport games?
There are three ways to simulate forcing. First method is measuring the distance between the left mouse button pressed and up. The second method is measuring the time pressed between when the mouse down and up. Third one is using both, measuring the distance and time pressed. So we can simulate a force by the difference in each method. For example, if user press long, applies higher force, or if he press and move mouse in long distance he can apply higher force or or vice versa, etc. We can not measure the real force, but we can simulate and let the user feel like he or she apply a force to an object.
Force effect simulation explained

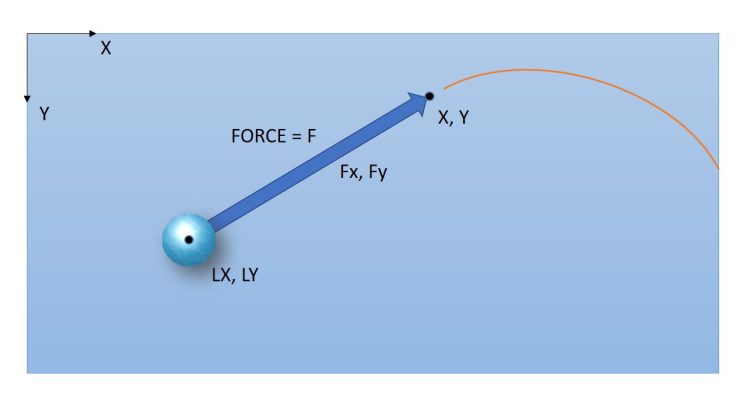

Let’s try to explain the first way to simulate. In this method we will measuring the distance between the mouse button is pressed and mouse button released.
Let’s add some global variables to our project, LX and LY will be used to record last X and Y coordinate of mouse when pressed, and we will use Fx and Fy variables to calculate forces in X and Y directions.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 |
//--------------------------------------------------------------------------- #include <fmx.h> #pragma hdrstop #include "Forcing_2D_Objects_Unit1.h" //--------------------------------------------------------------------------- #pragma package(smart_init) #pragma resource "*.fmx" TForm1 *Form1; float LX, LY; float Fx, Fy; bool forcing = false; //--------------------------------------------------------------------------- __fastcall TForm1::TForm1(TComponent* Owner) : TForm(Owner) { } |
Adding some code to the mouse events
Now select the Form (i.e Form1), go to its events in Object Inspector, double click to OnMouseDown(), OnMouseMove() and OnMOuseUp() events. This will create automatically these FormMouseDown(), FormMouseMove(), FormMouseUp() event methods. Change each method inside as below to store last X and Y mous position and calculate Fx and Fy force by the difference between X and Y mouse directions. Please change codes as below,
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 |
void __fastcall TForm1::FormMouseDown(TObject *Sender, TMouseButton Button, TShiftState Shift, float X, float Y) { // let's record last X and Y coordinate when mouse is pressed LX = X; LY = Y; forcing = true; } //--------------------------------------------------------------------------- void __fastcall TForm1::FormMouseMove(TObject *Sender, TShiftState Shift, float X, float Y) { if(forcing) { // You can display force vector or display force values here before forcing the object } } //--------------------------------------------------------------------------- void __fastcall TForm1::FormMouseUp(TObject *Sender, TMouseButton Button, TShiftState Shift, float X, float Y) { float k = 0.1; Fx = k*(X-LX); Fy = k*(Y-LY); forcing = false; } |
Moving an image with force effects
Finally we can move this image with these forces.
|
1 2 3 4 5 6 |
void __fastcall TForm1::Timer1Timer(TObject *Sender) { Image1->Position->Point = { Image1->Position->X+Fx, Image1->Position->Y+Fy }; } |
You can add friction, gravity and extra accelerations to your objects. Now it is your time, Imagine what you can do!
